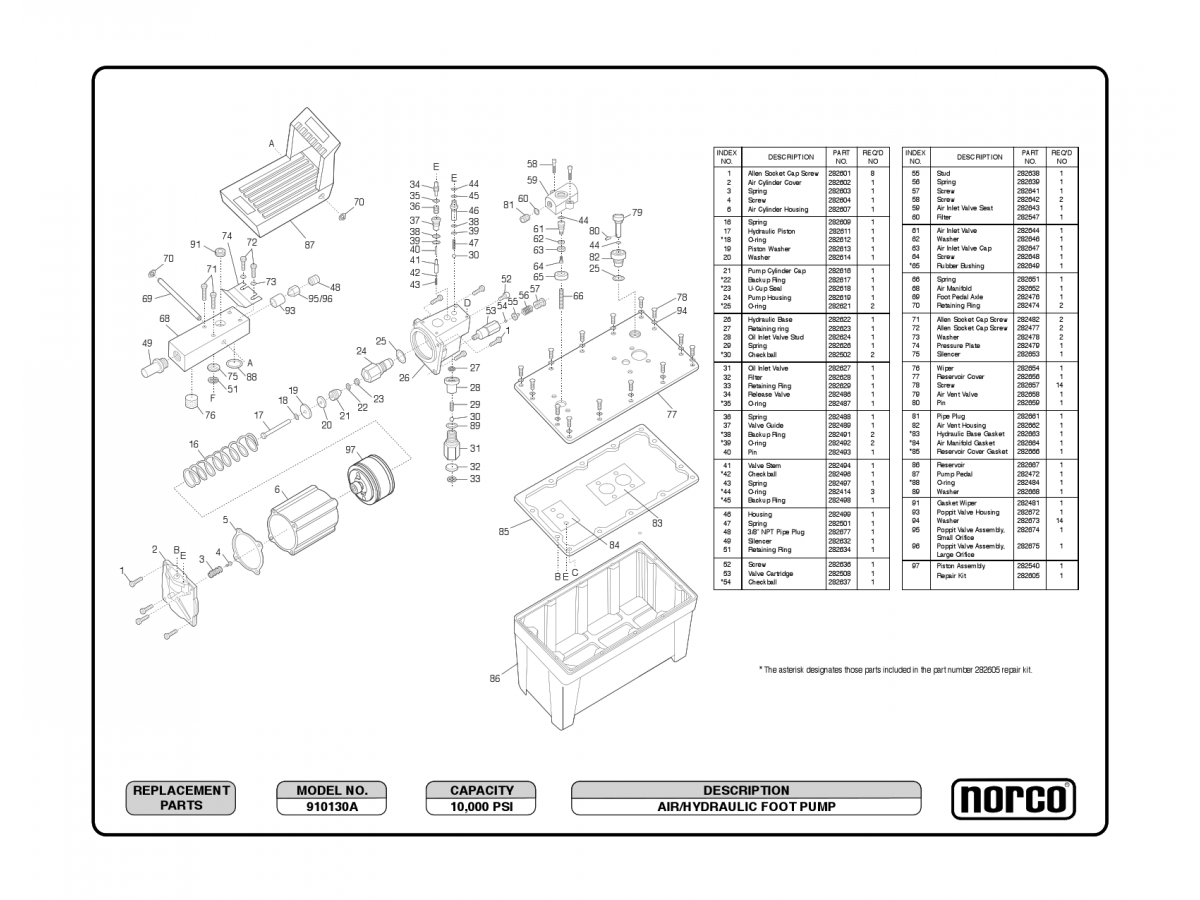

910130A Breakdown

1

ALLEN SOCKET CAP SCREW SET-8

..

$19.72

2

AIR CYLINDER COVER

..

$6.30

3

SPRING

..

$0.44

4

SCREW

..

$0.32

6

AIR CYLINDER HOUSING

..

$26.58

16

SPRING

..

$3.80

17

HYDRAULIC PISTON

..

$3.26

19

PISTON WASHER

..

$0.72

20

WASHER

..

$0.32

21

PUMP CYLINDER CAP

..

$3.60

24

PUMP HOUSING

..

$7.70

27

RETAINING RING

..

$0.18

28

OIL INLET VALVE STUD

..

$3.52

29

SPRING

..

$1.56

30

.0314 DIA CHECK BALL-KIT ONLY 282605 FOR 910130/A -

..

$0.00

31

OIL INLET VALVE

..

$6.30

32

FILTER

..

$0.72

33

RETAINING RING

..

$0.28

34

RELEASE VALVE

..

$2.12

36

SPRING

..

$0.36

37

VALVE GUIDE

..

$4.94

38

BACK-UP RING KIT ONLY 282605 FOR 910130/A -

..

$0.00

39

O-RING KIT ONLY 282605 FOR 910130/A -

..

$0.00

40

PIN

..

$0.36

41

VALVE STEM

..

$2.82

42

1

..

$8.00

43

SPRING

..

$0.28

46

HOUSING

..

$4.08

47

SPRING

..

$0.28

49

SILENCER

..

$3.92

52

SCREW

..

$0.36

53

HOUSING

..

$7.40

54

5

..

$32.00

55

STUD

..

$1.76

56

SPRING

..

$0.72

57

SCREW

..

$2.12

59

AIR INLET VALVE SEAT

..

$6.74

60

FILTER

..

$0.40

61

AIR INLET VALVE

..

$3.52

62

WASHER

..

$0.22

63

AIR INLET VALVE CAP

..

$1.90

64

SCREW

..

$0.28

65

RUBBER BUSHING KIT ONLY 282605 FOR 910130/A

..

$0.28

66

SPRING

..

$0.32

68

AIR MANIFOLD WITH GASKET WIPER

..

$29.34

69

PIVOT PIN FOR 72450

..

$1.28

70

RETAINING RING SET-2

..

$0.62

71

ALLEN SCREW SET-2

..

$1.86

74

PRESSURE PLATE

..

$1.02

75

SILENCER

..

$1.72

80

PIN

..

$0.18

81

PIPE PLUG ON 910130A

..

$1.16

82

AIR VENT HOUSING

..

$6.30

85

RESERVOIR COVER GASKET KIT ONLY 282605 FOR 910130/A

..

$10.36

86

RESERVOIR FOR 910130

..

$61.84

87

PUMP PEDAL

..

$14.00

89

WASHER

..

$1.42

91

SPONGE FILTER FOR 72450

..

$0.28

93

POPPET VALVE HOUSING

..

$2.40

95

POPPET VALVE FOR 910130

..

$4.64

97

PISTON ASSEMBLY

..

$35.44

97

SEAL KIT FOR 910130

..

$38.80
