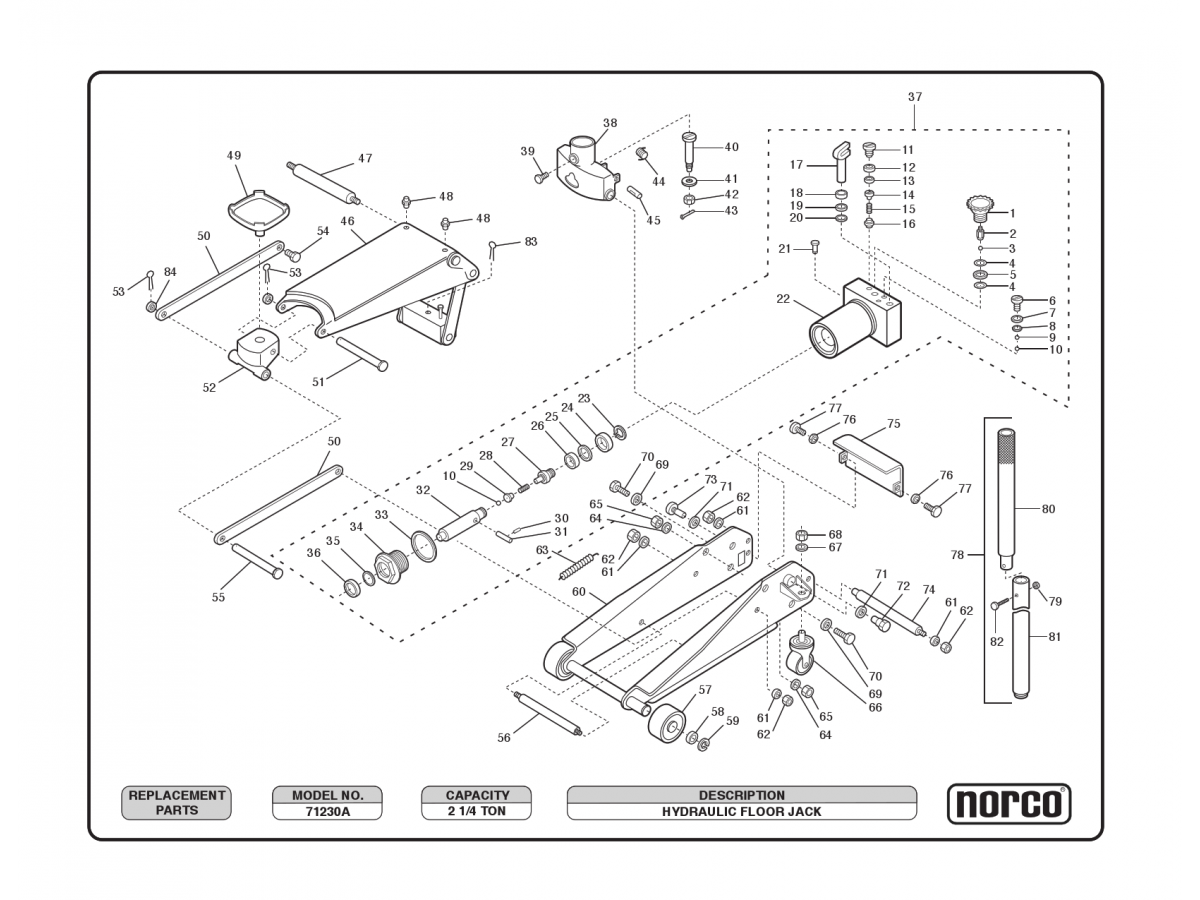

71230A Breakdown

1

RELEASE VALVE ASSEMBLY

..

$13.80

2

RELEASE VALVE

..

$3.80

4

COPPER WASHER

..

$3.56

5

GUIDE WASHER

..

$0.72

6

VALVE PORT SCREW

..

$4.36

11

OVERLOAD SCREW COVER-PLASTIC

..

$1.04

15

OVERLOAD SPRING

..

$1.48

16

OVERLOAD VALVE

..

$4.48

17

PUMP PISTON .783 DIA.

..

$18.12

18

OIL SEAL KIT ONLY -

..

$0.00

19

BACK-UP RING KIT ONLY -

..

$0.00

20

O-RING KIT ONLY -

..

$0.00

21

OIL FILL PLUG

..

$1.48

28

BY-PASS SPRING

..

$0.28

30

VALVE PIN FOR 71232

..

$0.80

31

LIMIT PIN FOR 71232

..

$3.08

37

HYDRAULIC BLOCK ASSY FOR 71230

..

$105.88

38

HANDLE BASE WITH FLAT GEAR

..

$18.48

39

HANDLE RETAINER SCREW

..

$0.28

41

FLAT GEAR (MAY BE WELDED AS PART OF 218541

..

$2.98

44

SEE 24001 TORSION SPRING

..

$3.48

45

PUMP PISTON PIN

..

$2.28

48

BOSOLETE ZERK FITTING

..

$6.16

49

SADDLE FOR 71230A

..

$71,245.00

50

GUIDE ARM

..

$9.84

51

SADDLE BASE PIN 71232

..

$1.84

52

SADDLE BASE

..

$26.40

54

GUIDE ARM BOLT

..

$0.92

55

GUIDE ARM PIN FOR 71230

..

$1.84

57

WHEEL

..

$14.80

58

WHEEL WASHER

..

$1.32

59

WHEEL RETAINING RING

..

$1.32

61

LOCKWASHER

..

$0.44

62

NUT

..

$0.60

63

RAM RETRACTION SPRING

..

$2.80

64

PIVOT PIN WASHER

..

$0.92

65

PIVOT PIN NUT

..

$1.40

66

CASTER ASSEMBLY FOR 71230A

..

$22.00

67

CASTER LOCK WASHER

..

$0.72

68

CASTER NUT

..

$1.84

69

WASHER

..

$1.04

70

MOUNTING BOLT

..

$1.40

71

HANDLE BASE WASHER

..

$0.66

72

LEFT HANDLE BASE BOLT

..

$1.34

73

RIGHT HANDLE BASE BOLT

..

$1.34

75

KICK PLATE

..

$9.08

78

SEE P

..

$0.00

81

LOWER HANDLE

..

$22.00

82

HANDLE SCREW

..

$4.72

83

TRUNION COTTER PIN

..

$0.28

84

REPAIR KIT FOR 71230

..

$38.24
