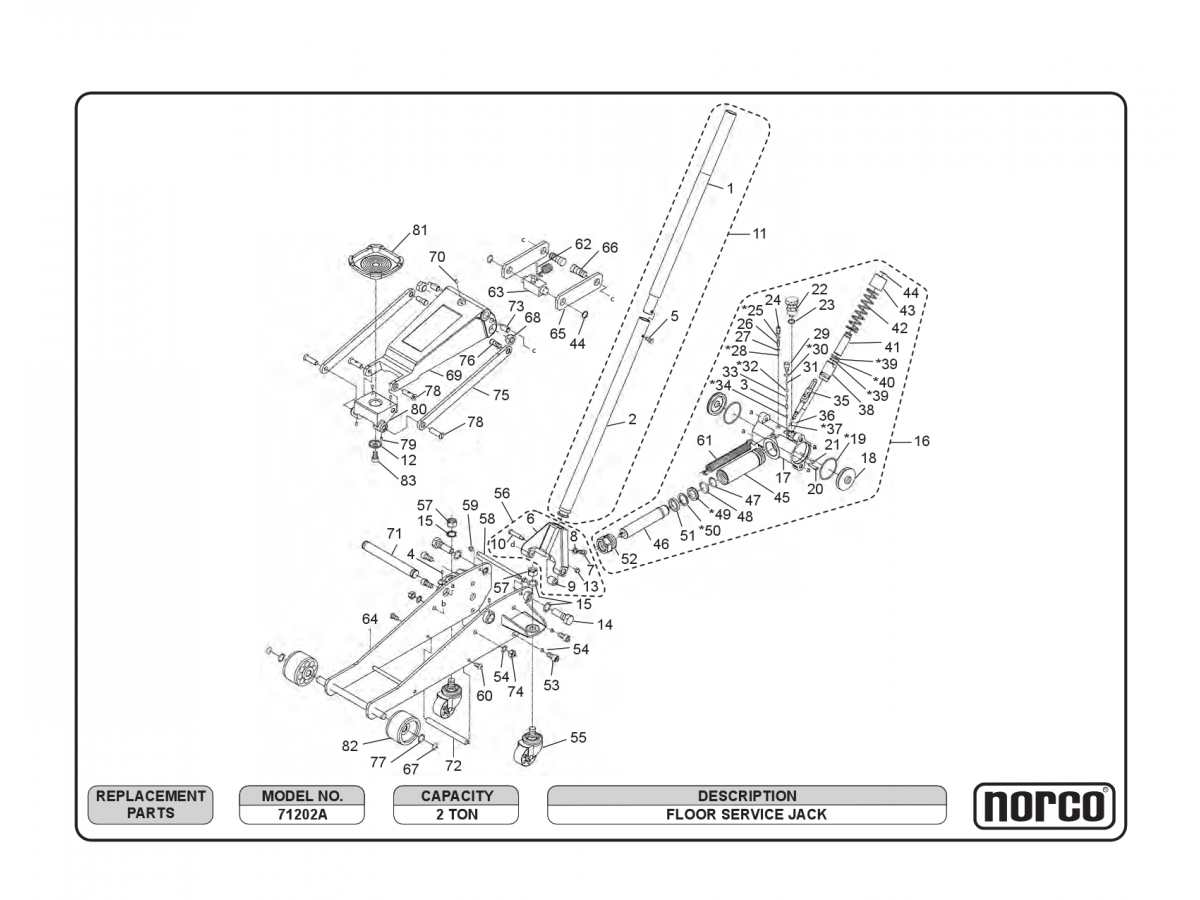

71202A Breakdown

1

TOP HANDLE HALF 71202

..

$8.76

2

LOWER HANDLE

..

$9.76

3

RETAINER

..

$0.76

5

HEX HEAD SCREW FOR 78160

..

$14.00

9

HANDLE BASE PUMP ROLLER

..

$3.92

10

METRIC SHOULDER BOLT

..

$0.92

11

COMPLETE HANDLE ASSY - 71202

..

$18.52

12

WASHER FOR 71202A SADDLE

..

$1.74

13

NYLON METRIC NUT

..

$0.12

14

HANDLE BASE PIVOT BOLT FOR 71202A

..

$3.08

15

STAR LOCK WASHER

..

$0.46

16

COMPLETE HYD UNIT 71202A

..

$172.00

19

O-RING FOR END CAP -

..

$0.00

22

VENTED FILL PLUG

..

$5.56

26

OVERLOAD SPRING

..

$1.96

27

OVERLOAD SPRING END CAP

..

$0.24

29

VALVE CAP SCREW

..

$0.68

30

COPPER WASHER FOR 71202A - REPAIR KIT

..

$0.36

31

LARGE SEPARATOR SPRING

..

$0.48

33

SMALL SEPARATOR SPRING

..

$0.28

35

RE. VALVE ASSY 71202A

..

$71,222.00

38

PUMP HOUSING

..

$2.68

39

PUMP O-RING - 218680 KIT ONLY -

..

$0.00

41

PUMP PISTON FOR 71202A

..

$17.88

42

PUMP SPRING

..

$4.84

43

PUMP SPRING CAP FOR 71202A

..

$2.20

44

3

..

$4.00

49

RAM U-CUP - 71202 KIT ONLY -

..

$0.00

53

1/2-13 x 1 HEX HEAD BOLT GR 5 PLATED

..

$0.46

54

1

..

$2.00

55

CASTER ASSEMBLY FOR 71202A

..

$22.00

57

3/4-10 FIINISHED HEX NUT PLATED

..

$4.00

59

HEX NUT

..

$1.50

66

TRUNION SHOULDER BOLT - 71202

..

$0.56

67

RETAINER

..

$0.68

68

3

..

$4.00

75

GUIDE ARM FOR 71202A

..

$5.14

76

GUIDE ARM BOLT

..

$0.88

77

FRONT AXLE WASHER 71202A DIM: 22X28X2

..

$0.56

78

RIVET

..

$4.38

79

SET SCREW FOR 71202A

..

$0.42

81

SADDLE FOR 71202A

..

$13.52

82

FRONT WHEEL FOR 71202A

..

$18.76

83

BOLT FOR 71202A SADDLE

..

$3.00
